Using our latest SpinUp design, vessels accelerate to the final rpm.
This unit comes with one SpinLogic™ vessel + Tachometer Control
Unit. Includes a 9v power supply, motor cable, kynar valves/caps, and
spare parts. Available chamber sizes are 14cc, 25cc, 35cc, or 50cc.
Custom Modifications Available

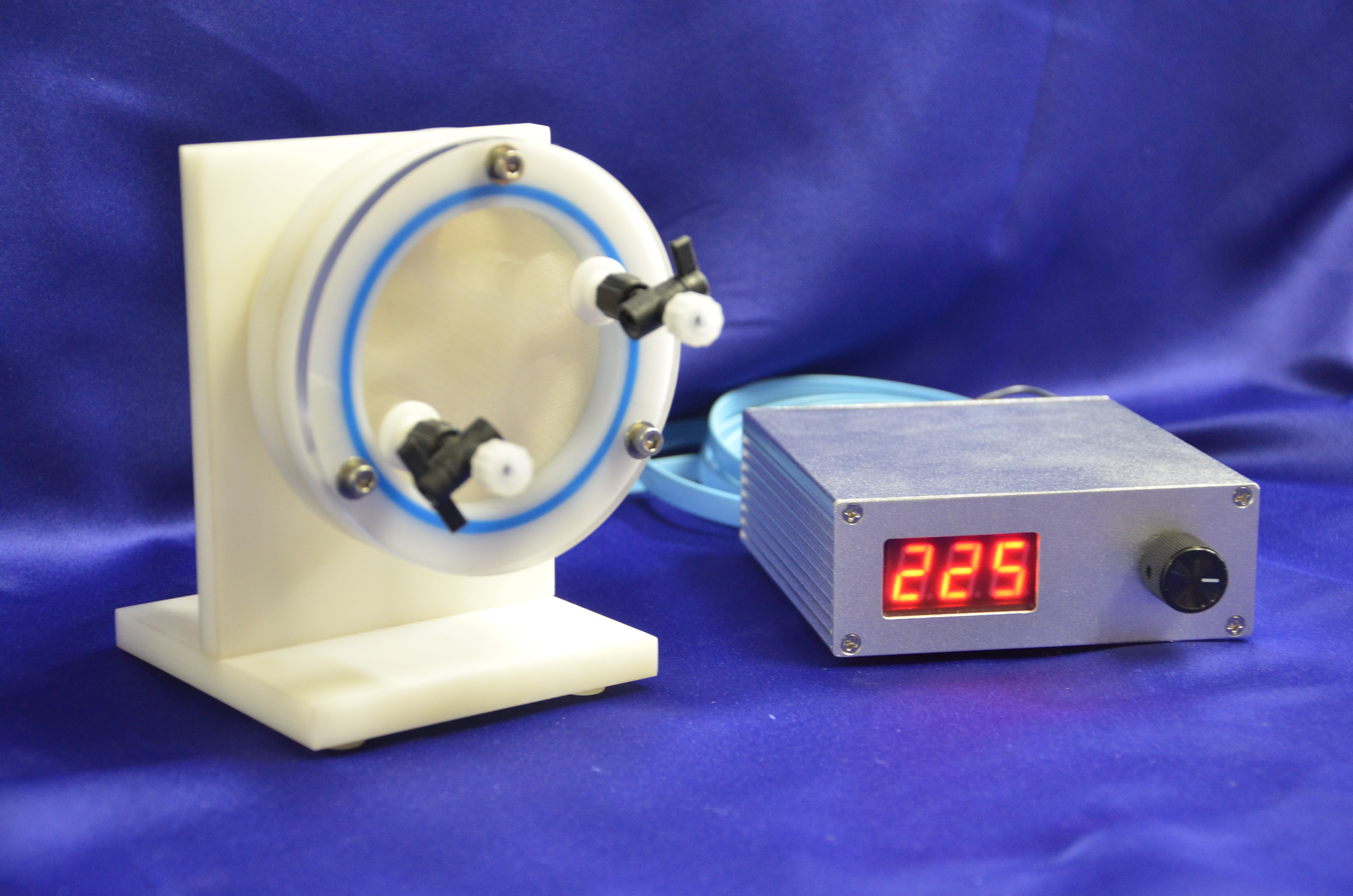

SpinLogic™ Bioreactor with Tachometer Control Unit
Specifications and Features:
Vessel made of nontoxic biocompatible materials with 14cc, 25cc, 35cc, or 50cc total vessel volume.
Replaceable Kynar valves withstand autoclaving.
Sterilizable by autoclaving or alcohol. Can withstand dozens of cycles.
Compact Microstepping drive with 6400 microsteps per revolution.
Flat cable easily passes through incubator door seal.
Speed adjustable from 10 to 32 rpm.
Operates continuously in your CO2 incubator for months at a time.
UL approved power supply.
Dimensions:
Vessel: 4" diameter, 1.5" high
Motor base: 9.750" H x 8.000" W x 6.500" D
Microstepping Drive: 1.575" H x 4.325" W x 4.450" D
Power Supply: 1.5a 9 VDC, supplied by a plug in AC wall unit. 1.2"x2.3"x3"
In Stock for Immediate Delivery
To Order Call 713 588 4662
Wall Power Supply
Warranted against defects in materials or workmanship for one year.
Vessel made of nontoxic biocompatible materials with 14cc, 25cc, 35cc, or 50cc total vessel volume.
Replaceable Kynar valves withstand autoclaving.
Sterilizable by autoclaving or alcohol. Can withstand dozens of cycles.
Compact Microstepping drive with 6400 microsteps per revolution.
Flat cable easily passes through incubator door seal.
Speed adjustable from 10 to 32 rpm.
Operates continuously in your CO2 incubator for months at a time.
UL approved power supply.
Dimensions:
Vessel: 4" diameter, 1.5" high
Motor base: 9.750" H x 8.000" W x 6.500" D
Microstepping Drive: 1.575" H x 4.325" W x 4.450" D
Power Supply: 1.5a 9 VDC, supplied by a plug in AC wall unit. 1.2"x2.3"x3"
In Stock for Immediate Delivery
To Order Call 713 588 4662
Wall Power Supply
Warranted against defects in materials or workmanship for one year.
Call for pricing info.
Phone: 713-588-4662
